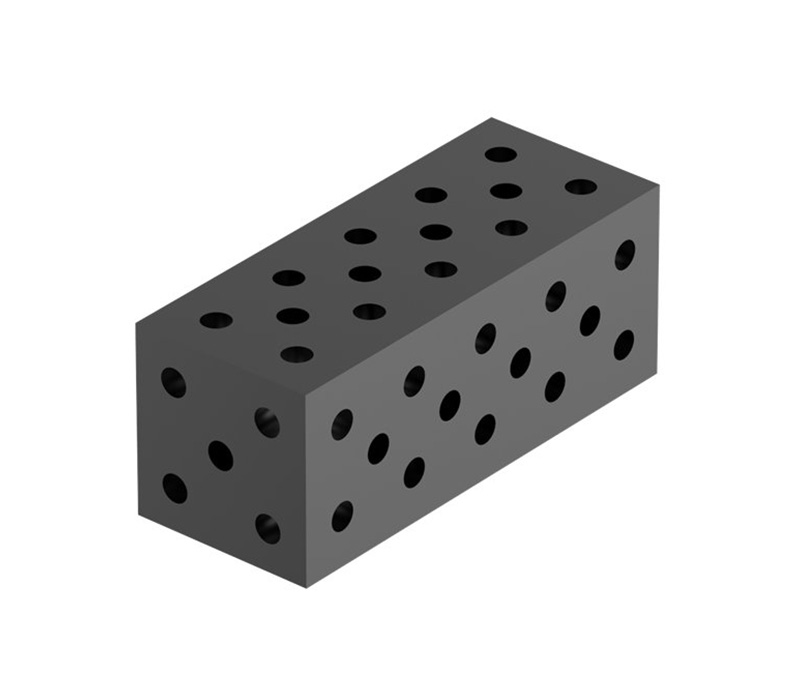

U Shape Box And L Shape Box
U-shaped and L-shaped square boxes are essential supporting components in modular 3D flexible welding systems. Their primary purpose is to provide height positioning, platform extension, and stable support for workpieces of various sizes and shapes.

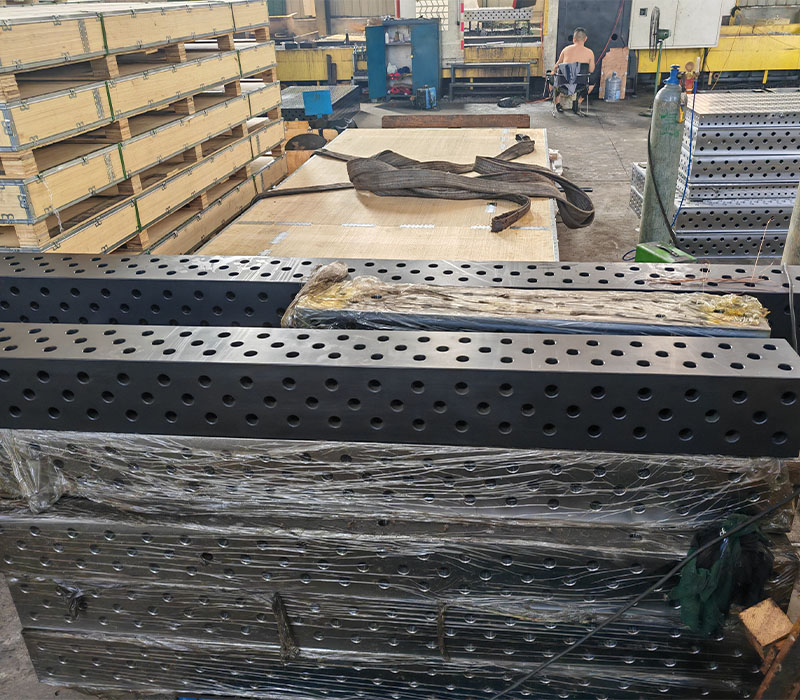

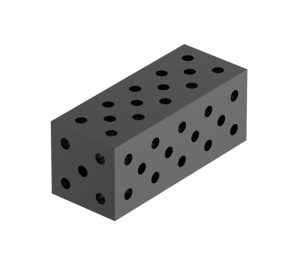

D28 U-shaped square boxes
| L(mm) | W(mm) | H(mm) | Type No. | Surface Treatment |
| 500 | 200 | 200 | D28FDT-UB01 | Polished/Nitrided |
| 1000 | 200 | 200 | D28FDT-UB02 | Polished/Nitrided |
| 1200 | 200 | 200 | D28FDT-UB03 | Polished/Nitrided |
| 1500 | 200 | 200 | D28FDT-UB04 | Polished/Nitrided |
| 2000 | 200 | 200 | D28FDT-UB05 | Polished/Nitrided |
| 2400 | 200 | 200 | D28FDT-UB06 | Polished/Nitrided |
| 3000 | 200 | 200 | D28FDT-UB07 | Polished/Nitrided |
| 4000 | 200 | 200 | D28FDT-UB08 | Polished/Nitrided |
| 1200 | 400 | 200 | D28FDT-UB09 | Polished/Nitrided |
| 2400 | 400 | 200 | D28FDT-UB10 | Polished/Nitrided |
|
Other specifications or materials can be customized |
||||

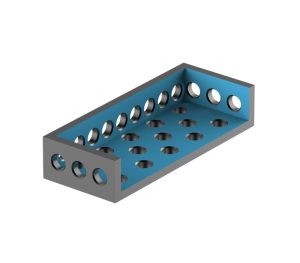

D28 L-shaped square boxes
| L(mm) | W(mm) | H(mm) | Type No. | Surface Treatment |
| 500 | 200 | 100 | D28FDT-LB01 | Polished/Nitrided |
| 1000 | 200 | 100 | D28FDT-LB02 | Polished/Nitrided |
| 1200 | 200 | 100 | D28FDT-LB03 | Polished/Nitrided |
| 1500 | 200 | 100 | D28FDT-LB04 | Polished/Nitrided |
|
Other specifications or materials can be customized |
||||

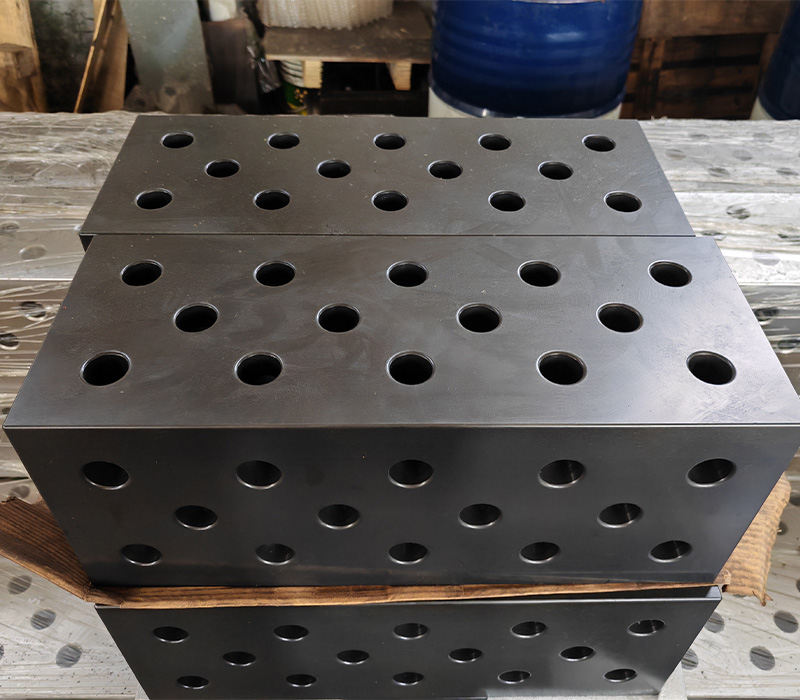

D16 U-shaped square boxes
| L(mm) | W(mm) | H(mm) | Type No. | Surface Treatment |
| 150 | 100 | 100 | D16FDT-UB01 | Polished/Nitrided |
| 250 | 100 | 100 | D16FDT-UB02 | Polished/Nitrided |
| 300 | 100 | 100 | D16FDT-UB03 | Polished/Nitrided |
| 500 | 100 | 100 | D16FDT-UB04 | Polished/Nitrided |
| 800 | 100 | 100 | D16FDT-UB05 | Polished/Nitrided |
|
Other specifications or materials can be customized |
||||
D16 L-shaped square boxes
| L(mm) | W(mm) | H(mm) | Type No. | Surface Treatment |
| 300 | 100 | 50 | D16FDT-LB01 | Polished/Nitrided |
| 500 | 100 | 50 | D16FDT-LB02 | Polished/Nitrided |
|
Other specifications or materials can be customized |
||||
Product Parameters
D28 Parameters
Material: S355JR(Q355B)
Aperture: φ16.065 — φ16.149mm.
Hole spacing: L1=50±0.05mm
Flatness: 0.1/1000mm.
Bearing: More Than 1T.
Hardness: Hardness of nitriding layer: HV450-HV630
D16 Parameters
Material: S355JR(Q355B)
Aperture: φ28.065 — φ28.149mm.
Hole spacing: L1=100±0.05mm
Flatness: 0.1/1000mm.
Hardness: Hardness of nitriding layer: HV450-HV630
