D28 3D WeldingTable
The selection of welding tables should be based on the size and shape of the product, and D16 series tables are commonly used for sheet metal and small steel structural components; The D28 series tables are commonly used in the large steel structure and heavy machinery industries.
- Modularity and flexibility
- High precision
- Quick fixing and clamping
- Easy to operate
- High price-performance ratio
- Clean, tidy and environmental Friendly
The selection of accessories should be based on the shape, size, and complexity of the workpiece; When the table cannot meet the size of the workpiece, U-shaped square boxes, L-shaped square boxes, supporting angle irons and other supporting components can be used for expansion and extension.
Welding table features
1.Modularity and flexibility
Can be connected and changed arbitrarily according to the shape of workpiece.
2.High precision.
The precision can reach decimillimetre(dmm) for fixing and clamping.
3.Quick fixing and clamping.
Only spending a few minutes to fix and clamp workpieces from one to another.
4.Easy to operate.
Only 2 hours, any worker can learn how to use it quickly.
5.High price-performance ratio.
1 set of modular flexible fixture can replace all traditional dedicated fixtures. Saved a lot of time, labor, material resources and funds for enterprises.
6.Clean, tidy and environmental Friendly.
Compared with mountains of rusty dedicated fixtures, modular flexible fixtures are the optimal choice.
D28 3D Series(Five Working Surfaces)
| L(mm) | W(mm) | H(mm) | Type No. | Surface Treatment | Optional Configuration |

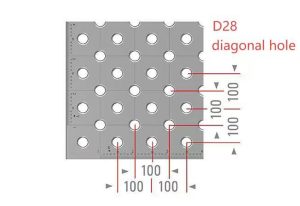

| 1000 | 800 | 200 | D28FDT-3T01 | Polished/Nitrided | Diagonal Hole |
| 1000 | 1000 | 200 | D28FDT-3T02 | Polished/Nitrided | Diagonal Hole |
| 1200 | 800 | 200 | D28FDT-3T03 | Polished/Nitrided | Diagonal Hole |
| 1200 | 1000 | 200 | D28FDT-3T04 | Polished/Nitrided | Diagonal Hole |
| 1200 | 1200 | 200 | D28FDT-3T05 | Polished/Nitrided | Diagonal Hole |
| 1500 | 1000 | 200 | D28FDT-3T06 | Polished/Nitrided | Diagonal Hole |
| 1500 | 1500 | 200 | D28FDT-3T07 | Polished/Nitrided | Diagonal Hole |
| 2000 | 1000 | 200 | D28FDT-3T08 | Polished/Nitrided | Diagonal Hole |
| 2000 | 1500 | 200 | D28FDT-3T09 | Polished/Nitrided | Diagonal Hole |
| 2000 | 2000 | 200 | D28FDT-3T10 | Polished/Nitrided | Diagonal Hole |
| 2400 | 1200 | 200 | D28FDT-3T11 | Polished/Nitrided | Diagonal Hole |
| 3000 | 1500 | 200 | D28FDT-3T12 | Polished/Nitrided | Diagonal Hole |
| 3000 | 2000 | 200 | D28FDT-3T13 | Polished/Nitrided | Diagonal Hole |
| 4000 | 2000 | 200 | D28FDT-3T14 | Polished/Nitrided | Diagonal Hole |
| Other specifications or materials can be customized | |||||
Product Parameters
Material: S355JR(Q355B)
Aperture: φ28.065 — φ28.149mm.

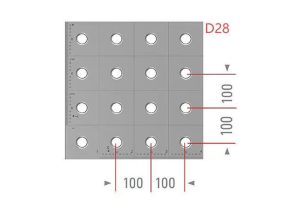

Hole spacing: L1=100±0.05mm
Flatness: 0.1/1000mm.
Bearing: More Than 5T.
Hardness: Hardness of nitriding layer: HV450-HV630
