D28 Welding Fixture
- D28 Positioning Square

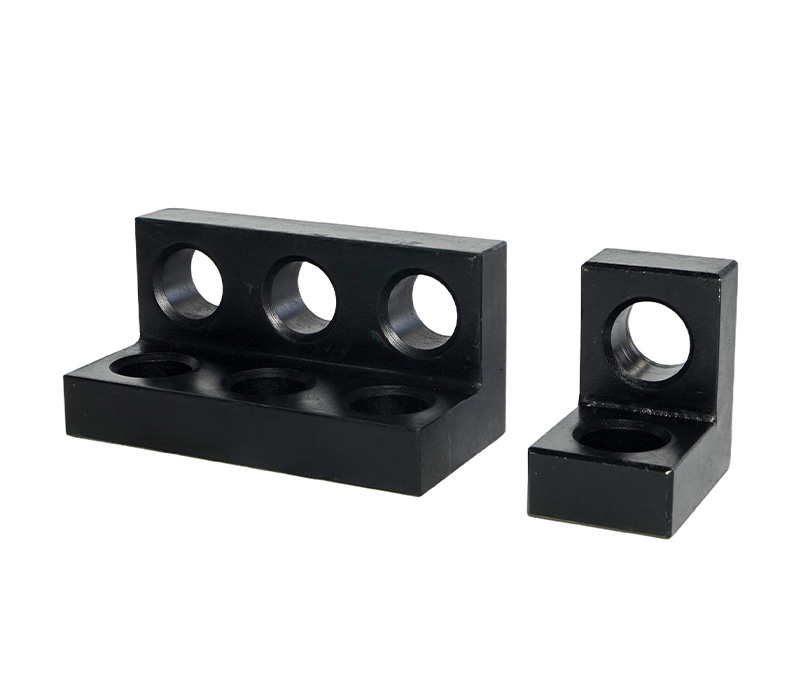

Positioning Square |
|||
| Type No. | Size | Weight/kg | Surface |

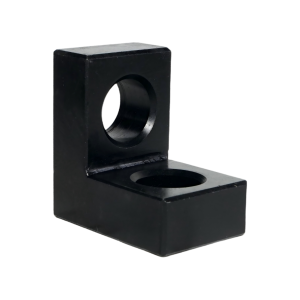

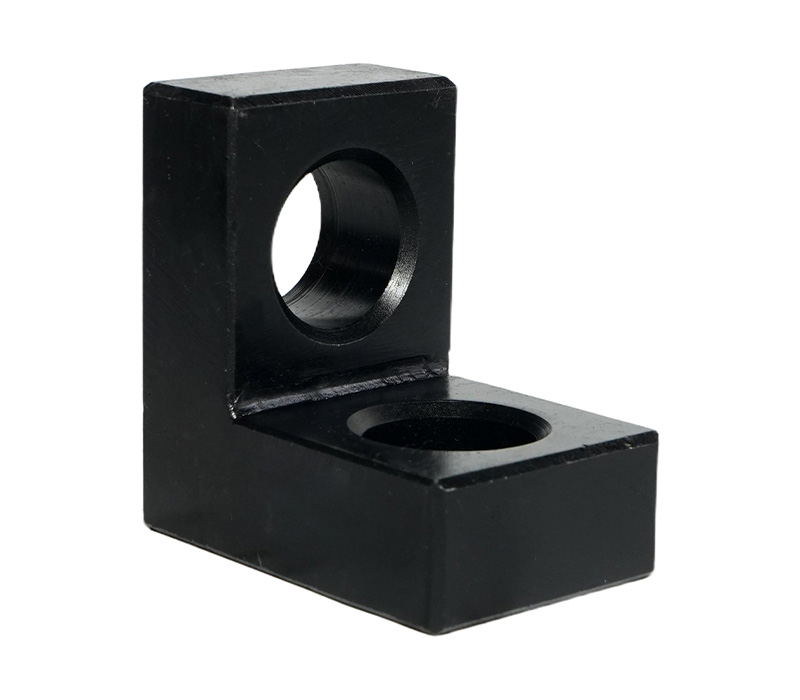

| D28FDT-PR01 | 75x50x75 | 1 | Oxidation/Nitrided
|

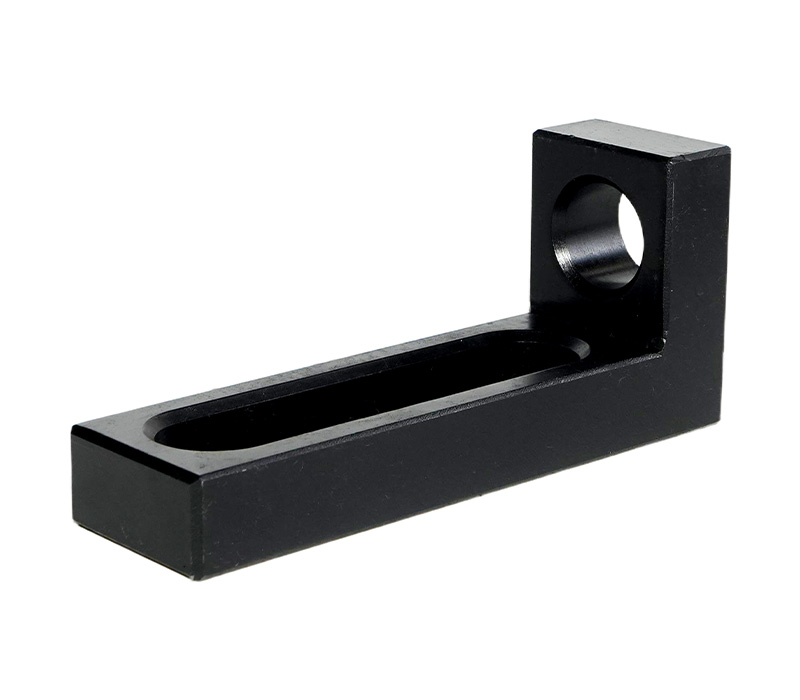

| D28FDT-PR02 | 175x50x75 | 1.4 | |

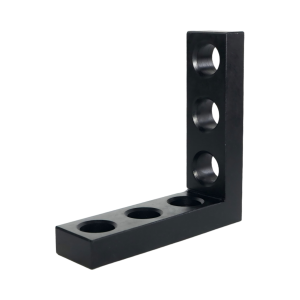

| D28FDT-PR03 | 175x50x175（K/K） | 2.50 | |

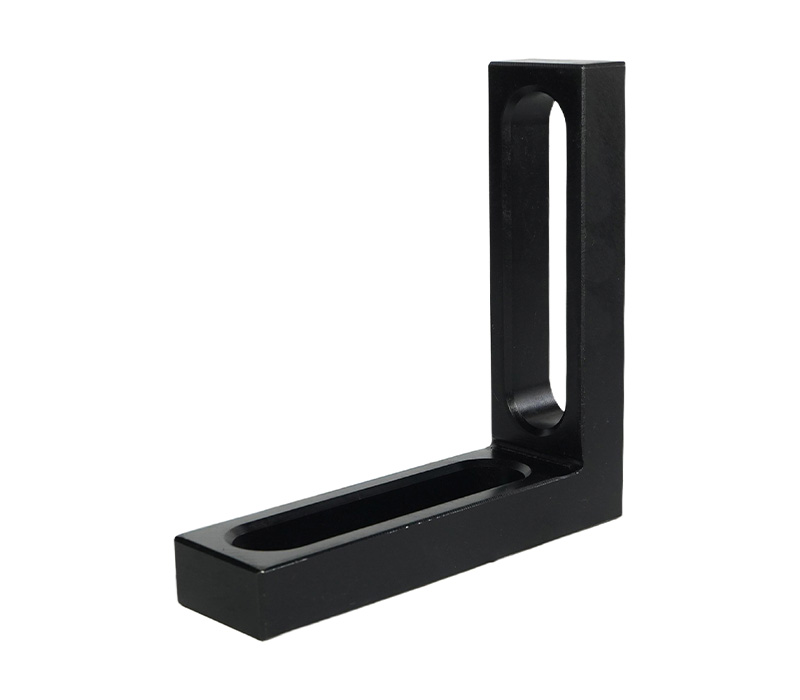

| D28FDT-PR04 | 175x50x175（C/C） | 1.82 | |

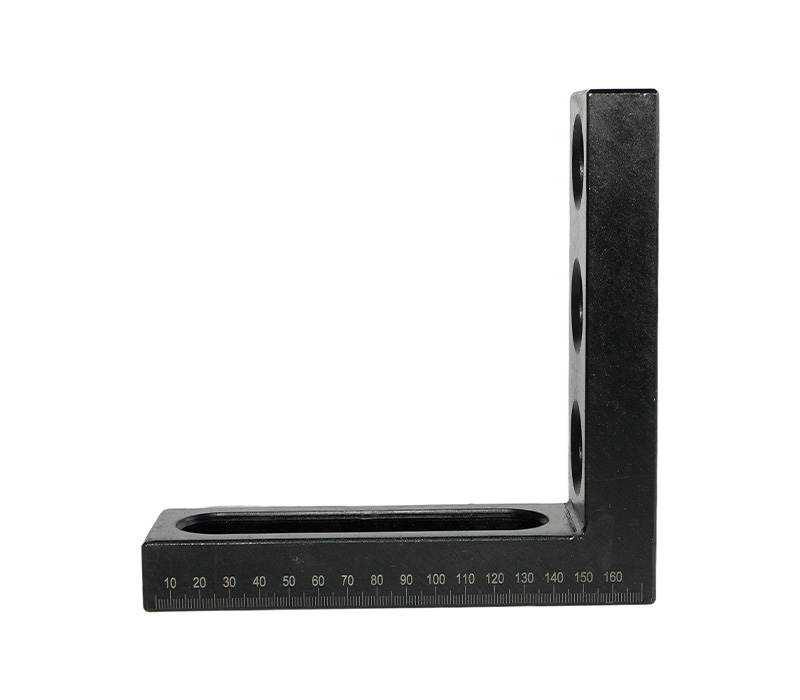

| D28FDT-PR05 | 175x50x175（K/C） | 2.20 | |

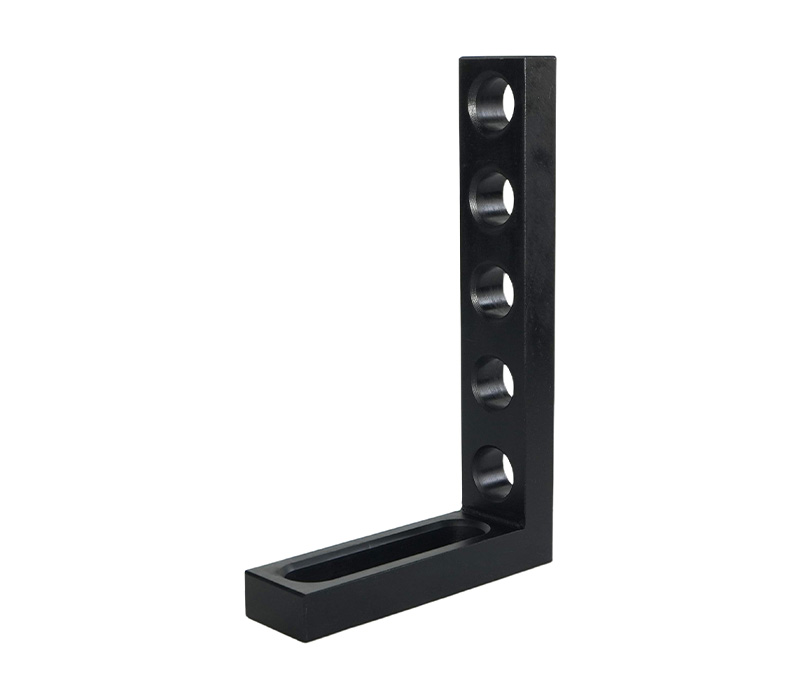

| D28FDT-PR06 | 275x50x175 | 2.80 | |

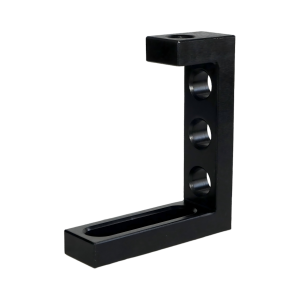

| D28FDT-PR07 | 200×175 | 2.6 | |

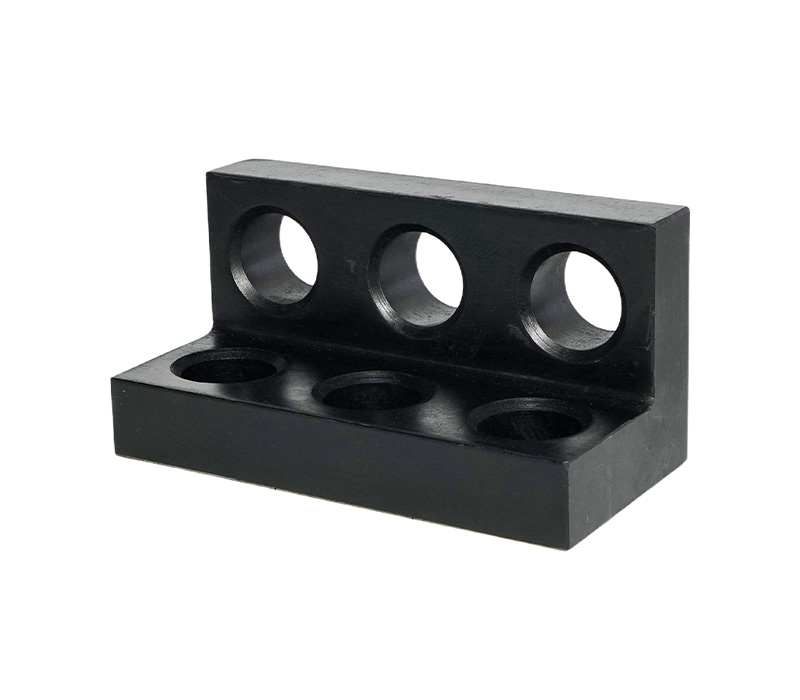

| D28FDT-PR08 | 150x75x75 | 2.5 | |
| D28FDT-PR09 | 300x200x75 | 6.5 | |
| D28FDT-PR10 | 500x200x75 | 10 | |
| D28FDT-PR11 | 750x200x75 | 13.00 | |
