D28 Welding Fixture
- D28 Positioning Ruler
Positioning Ruler |
|||
| Type No | Size | Weight/kg | Surface |

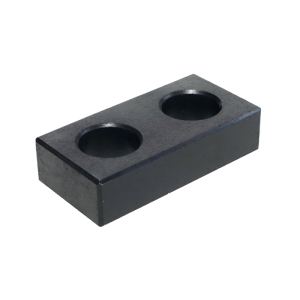

| D28FDT-PR01 | 100x50x25 | 0.70 | Oxidation/Nitrided
|

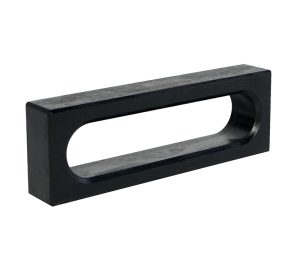

| D28FDT-PR02 | 150x50x25 | 0.80 | |

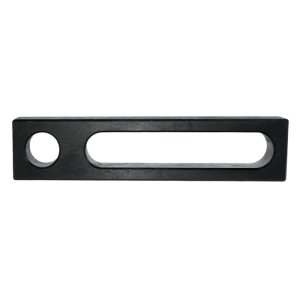

| D28FDT-PR03 | 225x50x25 | 1.20 | |

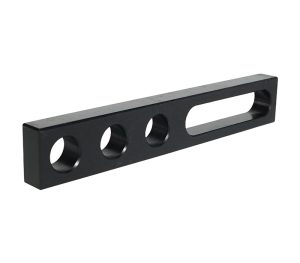

| D28FDT-PR04 | 300x50x25 | 2.00 | |

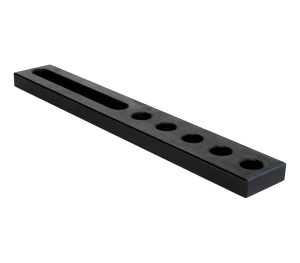

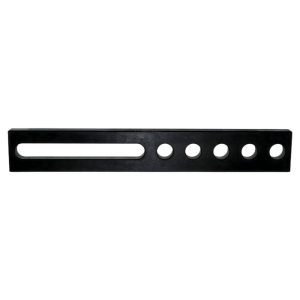

| D28FDT-PR05 | 500x75x25 | 5.60 | |
| D28FDT-PR06 | 800x75x25 | 9.00 | |

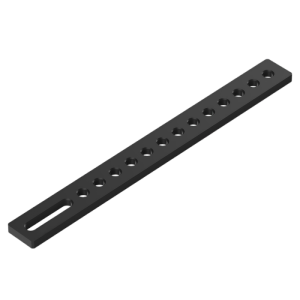

| D28FDT-PR07 | 1000x100x25 | 16.00 | |
